Double Cartridge Seals - ADC38

PDF PDF

CHARACTERISTICS:

• Balanced.
• Welded metal bellows.
• Not dependent on the rotation direction.
• Barrier fluid connections

OPERATING LIMITS -

d=25 to 85 mm
p-20 kg/cm
v= 20 m/s
T=-15 to +200°C (")

(") The temperature resistance depends on the mate- rial of the secondary seals used. The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

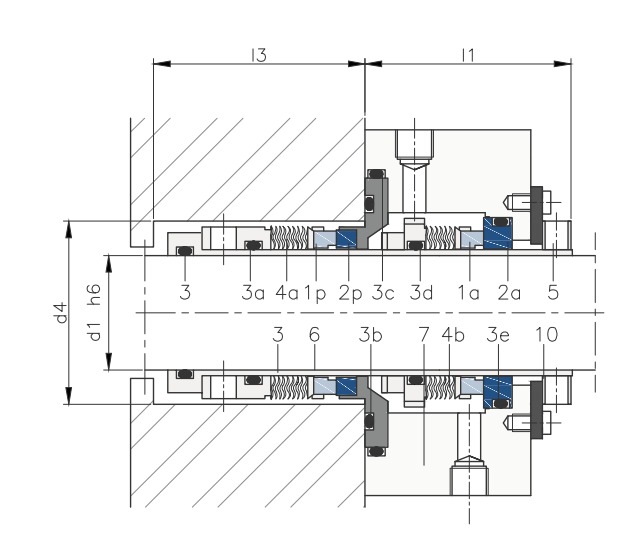

Double cartridge seal with a "tandem" arrangement suitable for working with pressurised or non-pressu rised barrier fluids The metal bellows design has a self-cleaning effect that prevents particles from building up inside it. This model is recommended in extremely demanding applications: with high-viscosity fluids, sticky fluids, particle-laden fluids, fluids with few lubricating and/ or pollutant properties and in high temperature appli- cations. Highly reliable cartridge.
