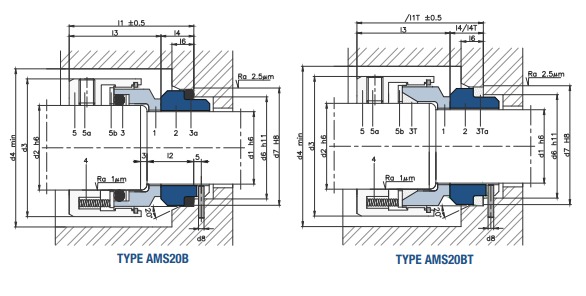

Multi Spring Seals AMS20B

PDF PDF

CHARACTERISTICS:

• Balanced.
• System attached to the shaft by allen screws.
• Not dependent on the rotation direction.

OPERATING LIMITS -

d1= 14 to 100 mm
p= 60 kg/cm²
v= 25 m/s
t= -15 to +200ºC (*)

(*) The temperature resistance depends on the material of the secondary seals used. The operating limits are defined by the PV factor which is
determined for the sealing system characteristics and those of the application

Description

The balanced contact surface design allows the me - chanical seal to be used in applications with hig pressures without suffering premature wear. The set of springs placed around the contact surface of the rotating part generates a more uniformed load than in models with a single spring. It can be supplied with PTFE wedge for highly aggressive chemicals with high temperatures. Seal compliant with standard EN 12756 (KB)
