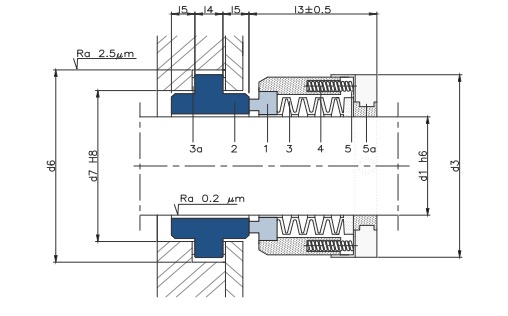

Bellows Seals - ATB16

PDF PDF

CHARACTERISTICS:

• Unbalanced.
• Not dependent on the rotation direction.
• External mounting.

OPERATING LIMITS -
d1=25 to 100 mm
p= 12kg/cm²
v= 16 m/s
t= -40 to +200ºC (*)

(*) The temperature resistance depends on the material of the secondary seals used. The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

This mechanical seal model is mostly made of PTFE and other materials that are resistant to chemically aggressive products. The metal parts are isolated from the process fluid.
