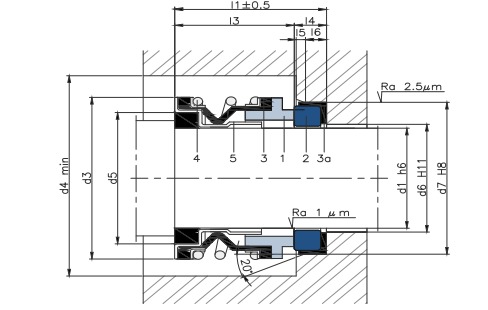

Bellows Seals - ARB02

PDF PDF

CHARACTERISTICS:
• Unbalanced.
• Not dependent on the rotation direction
• Single cylindrical spring.

OPERATING LIMITS:

d1= 9.52 to 25.40 mm
p= 7 kg/cm²
v= 10 m/s
t= -15 to +200ºC (*)

(*) The temperature resistance depends on the material of thesecondary seals used.
The operating limits are defined by the PV factor which isdetermined for the sealing system characteristics and those of the application

Description

Seal with a compact design for applications with low demands that require small diameters and often used for water pumps.
