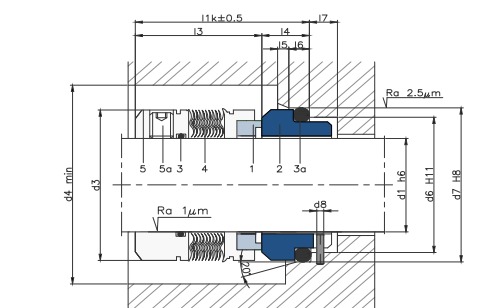

Bellows Seals - AMB85

PDF PDF

CHARACTERISTICS:

• Balanced.
• Welded metal bellows.
• Not dependent on the rotation direction.

OPERATING LIMITS -

d1= 16 to 100 mm
p= 20 kg/cm²
v= 25 m/s
t= -40 to +200ºC (*)
-40 to +200 °C (up to 400º C with a special design) (*)

*) The temperature resistance depends on the material of the secondary seals used. The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

Internally balanced, with no need for a stepped shaft (models AWS10B, AMS20B). The O-ring resting on the shaft does not cause wear as there is no axial movement. Appropriate for applications with sticky or high viscosity fluids as its open leaf design generates a self-cleaning effect. In addition it is suitable for application at moderate pressures and high temperatures (for up to 400º C please enquire) and very aggressive fluids in chemical and mechanical terms. Very often used in compressors
