Wave Spring Seal AWS31 Accura Seal & Engineering | Cartridge Seals | Agitator Seals | Wave Spring Seals

Wave Spring Seal AWS31

PDF PDF

CHARACTERISTICS:

• Balanced.
• Shaft Fixing system Without screws.
• Independent Rotation System .

OPERATING LIMITS -

d1= 20 to 35 mm
p= 35 kg/cm²
v= 20 m/s
t= -40 to +150ºC (*)

(*) The temperature resistance depends on the material of the secondary seals used. The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

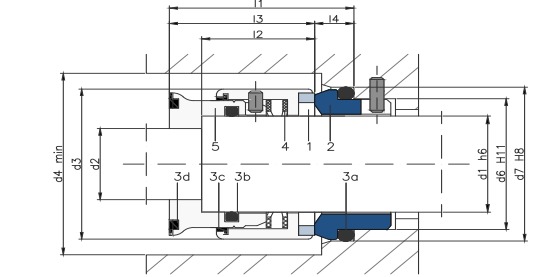

A wave spring mechanical seal in which the spring is isolated and protected from the product. Its hygienic design reduces the likelihood of traces of product being deposited on its surface, thereby eliminating the risk of contamination
