Wave Spring Seals AWS12

PDF PDF

CHARACTERISTICS -
• Unbalanced.
• System attached to the shaft by allen screws.
• Not dependent on the rotation direction

OPERATING LIMITS -

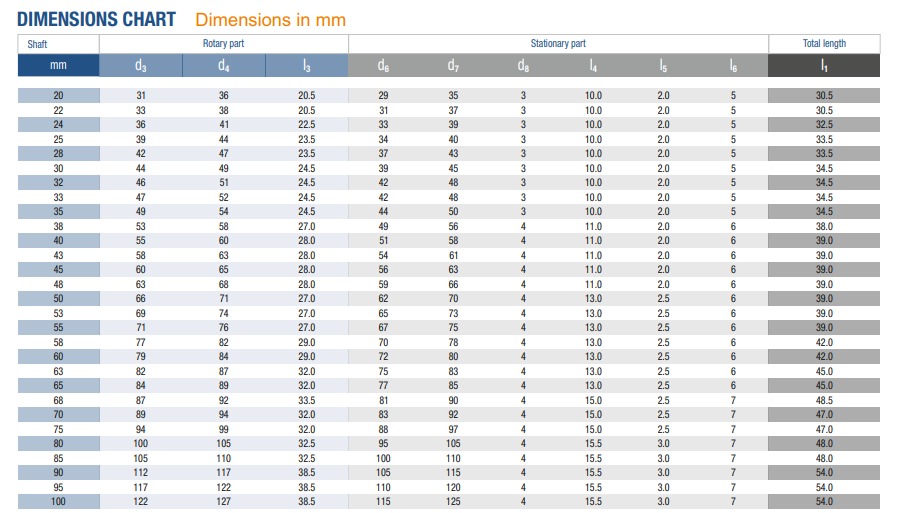

d1= 20 to 100 mm
p= 10 kg/cm²
v= 20 m/s
t= -15 to +200ºC (*)

(*) The temperature resistance depends on the material of the secondary seals used.
The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those ofthe application

Description

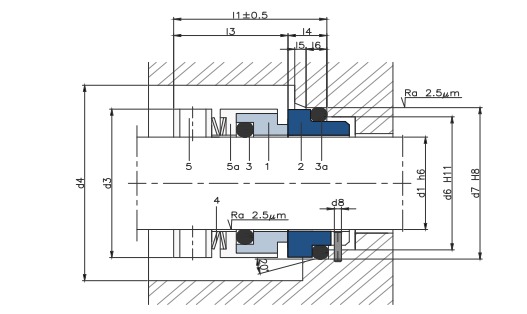

Its mounting dimensions make it a perfect seal for installing in small spaces. The wave spring is not blocked or obstructed when working with fluids laden with particles and fibers, or viscous fluids. Standard L1 DIN stationary part
