Single Cartridge Seals - ASC211

PDF PDF

CHARACTERISTICS:

• Balanced.
•Multispring.
• Not dependent on the rotation direction.
• Stuffing box gland shape.
• Flush and drain connections.

OPERATING LIMITS:

d=25 to 70 mm
p-20 kg/cm
V= 11.2 m/s
t=-15 to +200°C (")

(") The temperature resistance depends on the material of the secondary seals used, The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

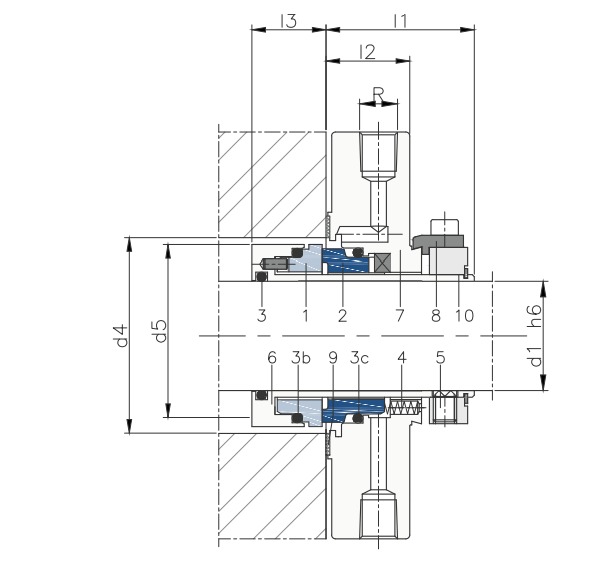

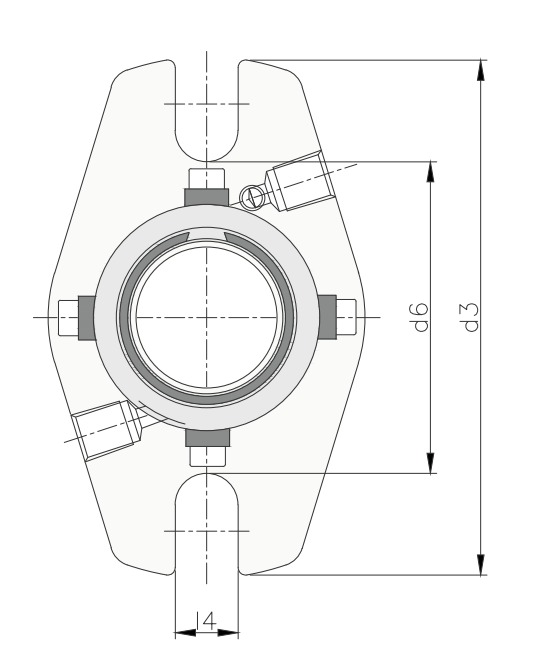

Cartridge cast flange with a stuffing box gland shape for replacing packing in pumps. The springs are protected from the product to prevent the blocking in applications with particle-laden fluids. The flange has two connections, one for flushing and cleaning the faces, and the another is a drain to clean the springs and also to control the small leaks.
