Double Cartridge Seals - ADC39

PDF PDF

CHARACTERISTICS:

• Balanced. Wave spring.
• Not dependent on the rotation direction.
• Barrier fluid, purge and drain connections

OPERATING LIMITS -

d=25 to 140 mm:
p= 20 kg/cm
v=25 m/s
t=-15 to +200°C (")

(The temperature resistance depends on the material of the secondary seals used. The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

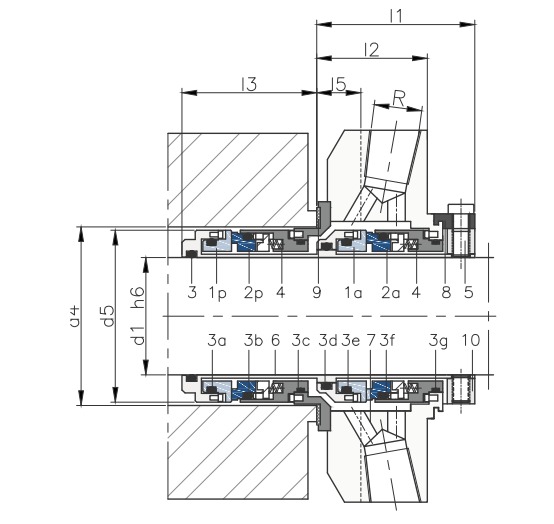

Description

Double cartridge seal with a "tandem" arrangement suitable for working with pressurised or non-pressu- rised barrier fluids. Recommended in applications in which a high level of safety is required. Possibility of incorporating a pumping ring to reduce the temperature gradient between the mechanical seal contact surfaces.
