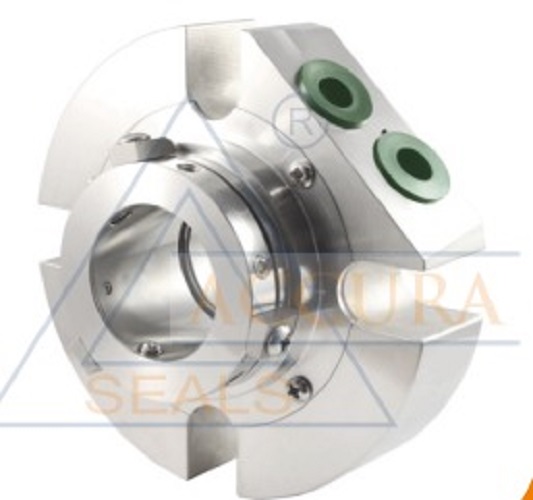

Double Cartridge Seals - ADC21

PDF PDF

CHARACTERISTICS:

• Balanced.
• Multispring
• Not dependent on the rotation direction.
• Barrier fluid connections.

OPERATING LIMITS -

d,= 25 to 120 mm
p=20 kg/cm' 9
V= 20 m/s
t-15 to +200°C (")

(") The temperature resistance depends on the mate- rial of the secondary seals used. 11 The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

A double cartridge seal with a "back to back" arran- gement which permits operation with barrier fluids in excessive pressure conditions with respect to the wor king fluid (P1+1.5-2 kg/cm"). For this reason it is advisable to install it in applications with toxic, contaminant or potentially dangerous fluids in where safety is an important factor.
