Bellows Seals -ARB01-ARB01S-ARB04-ARB04A and ARB06

PDF PDF

CHARACTERISTICS:

• Unbalanced.
• Not dependent on the rotation direction
• Single cylindrical spring.

OPERATING LIMITS -

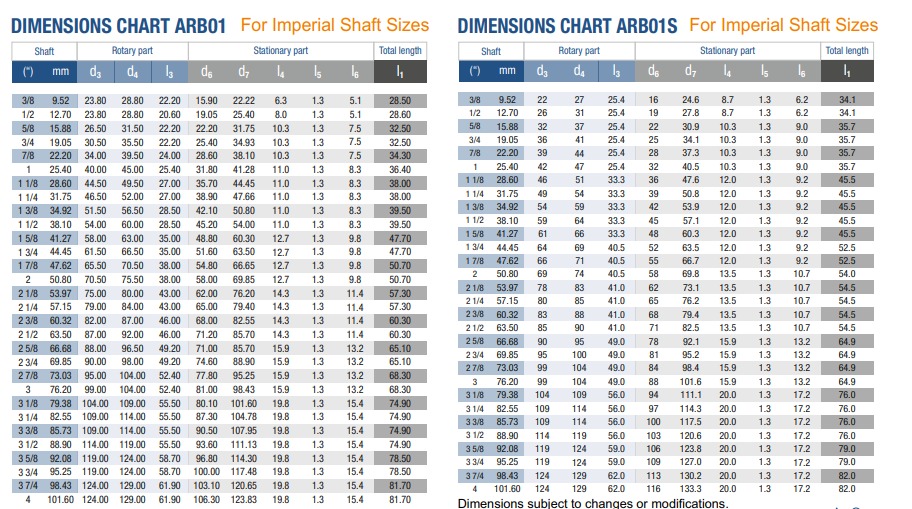

d1= 9.52 to 101.60mm
p= 10 kg/cm²
v= 10 m/s
t= -15 to +200ºC (*)

(*) The temperature resistance depends on the material of the secondary seals used.
The operating limits are defined by the PV factor which is determined for the sealing system characteristics and those of the application.

Description

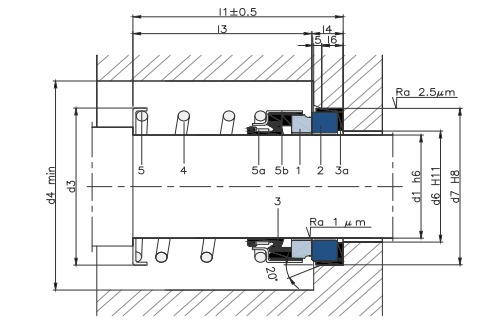

Mechanical seal with a simple design for general use.
Type ARB04/ ARB04A are standardised models in accordance with EN 12756 (KU).
